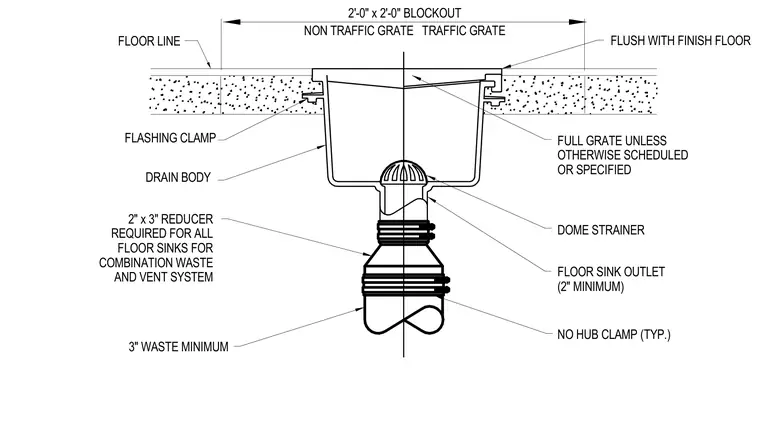

A floor sink is installed within a two-foot by two-foot blockout set flush with the finish floor line. The drain body features an integral flashing clamp and a two-inch minimum outlet fitted with a dome strainer. A two-inch by three-inch reducer is required for all floor sinks connected to a combination waste and vent system. No-hub clamps secure the piping to a three-inch minimum waste line. The assembly accommodates either a traffic or non-traffic full grate unless otherwise specified.
NON TRAFFIC GRATE TRAFFIC GRATE FLASHING CLAMP FLOOR LINE 3" WASTE MINIMUM AND VENT SYSTEM COMBINATION WASTE FLOOR SINKS FOR REQUIRED FOR ALL 2" x 3" REDUCER DRAIN BODY 2'-0" x 2'-0" BLOCKOUT OR SPECIFIED NO HUB CLAMP (TYP.) FLOOR SINK OUTLET DOME STRAINER (2" MINIMUM) FLUSH WITH FINISH FLOOR OTHERWISE SCHEDULED FULL GRATE UNLESS
