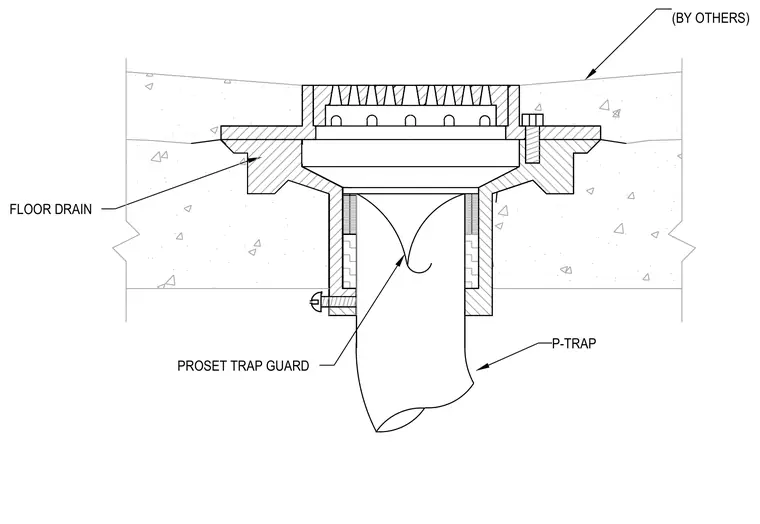

A floor drain body is recessed into the concrete slab assembly with surrounding flooring finished by others. The drain connects downward to a P-trap, incorporating an internal ProSet trap guard device to prevent sewer gas intrusion and evaporation.
