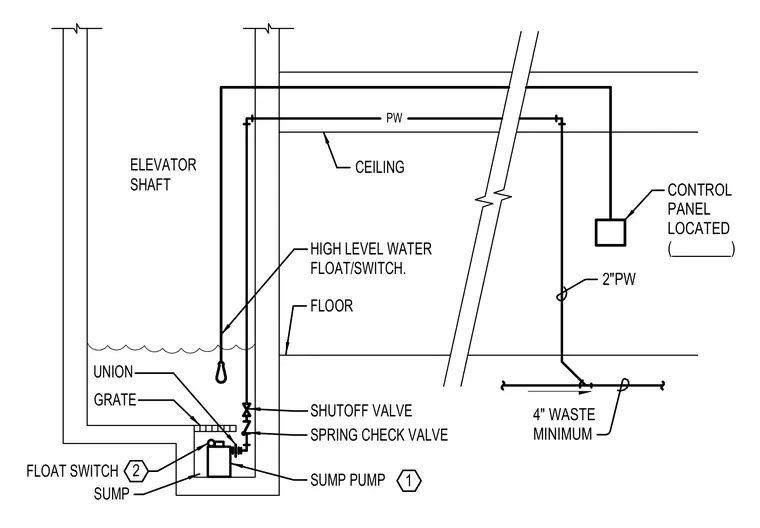

An elevator sump pump is installed within a concrete pit at the base of an elevator shaft, covered by a removable grate. The discharge piping rises from the pump through a union, a spring check valve, and a shutoff valve before routing horizontally below the ceiling. A high level water float switch hangs in the shaft above the sump, and a secondary float switch connects to the pump. The discharge line ties into a 2-inch pumped waste line that drops to connect to a 4-inch minimum waste line. A remote control panel connects via control wiring to monitor and operate the system.
PW SUMP PUMP UNION SHUTOFF VALVE SPRING CHECK VALVE SUMP ELEVATOR SHAFT CEILING FLOOR FLOAT SWITCH GRATE HIGH LEVEL WATER FLOAT/SWITCH. 2 1 2"PW CONTROL PANEL LOCATED (________) 4" WASTE MINIMUM
