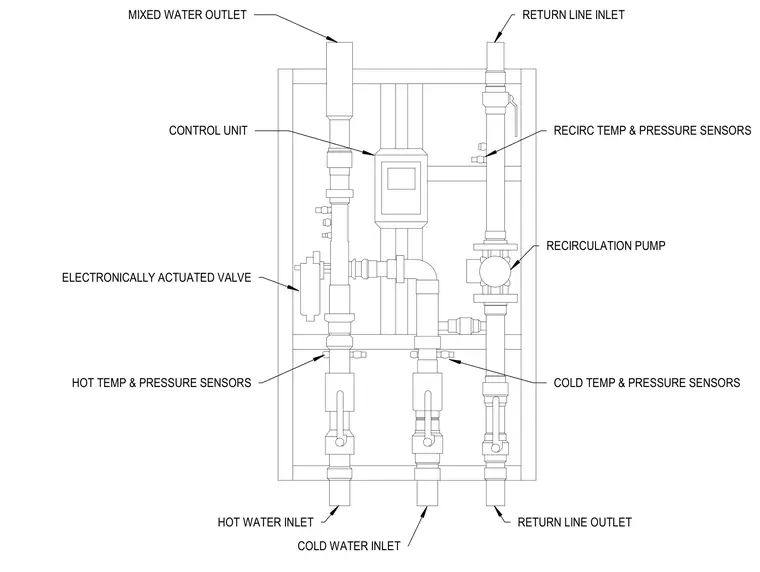

Hot water mixing station assembly including hot water inlet, cold water inlet, and return line inlet piping connected to an electronically actuated valve and control unit. The system features temperature and pressure sensors on both hot and cold supply lines, a recirculation pump, and a mixed water outlet. A return line outlet is provided for system balancing and loop circulation.
MIXED WATER OUTLET CONTROL UNIT RETURN LINE INLET RECIRC TEMP & PRESSURE SENSORS RECIRCULATION PUMP COLD TEMP & PRESSURE SENSORS HOT TEMP & PRESSURE SENSORS HOT WATER INLET COLD WATER INLET RETURN LINE OUTLET ELECTRONICALLY ACTUATED VALVE
