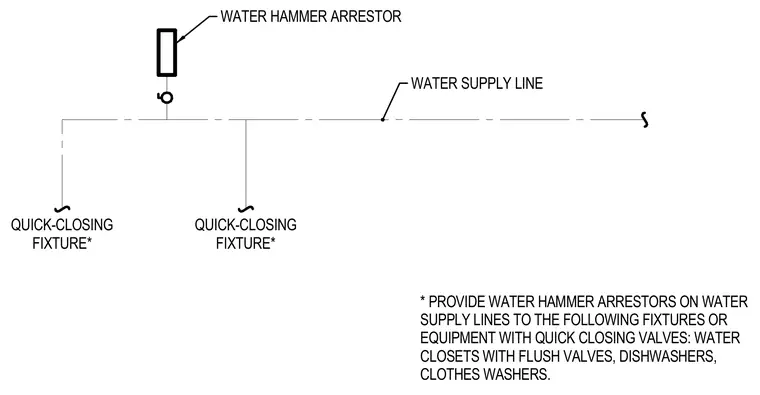

A water hammer arrestor mounts vertically onto the water supply line near quick-closing fixtures to absorb hydraulic shock. The supply piping connects to equipment and fixtures equipped with quick-closing valves such as flush valve water closets, dishwashers, and clothes washers.
QUICK-CLOSING FIXTURE* QUICK-CLOSING FIXTURE* WATER SUPPLY LINE WATER HAMMER ARRESTOR * PROVIDE WATER HAMMER ARRESTORS ON WATER SUPPLY LINES TO THE FOLLOWING FIXTURES OR EQUIPMENT WITH QUICK CLOSING VALVES: WATER CLOSETS WITH FLUSH VALVES, DISHWASHERS, CLOTHES WASHERS.
