A wall cleanout assembly connects to a vertical pipe as indicated on the plans. A cleanout tee extends a short pipe section outward flush to the finished wall surface, fitted with a taper thread bronze plug. A stainless steel access cover plate fastens over the opening using a three-and-a-half-inch long stainless steel countersunk anchor screw. Cover plate sizes vary based on the pipe size, ranging from six inches for a two-inch pipe up to ten inches for a six-inch pipe.

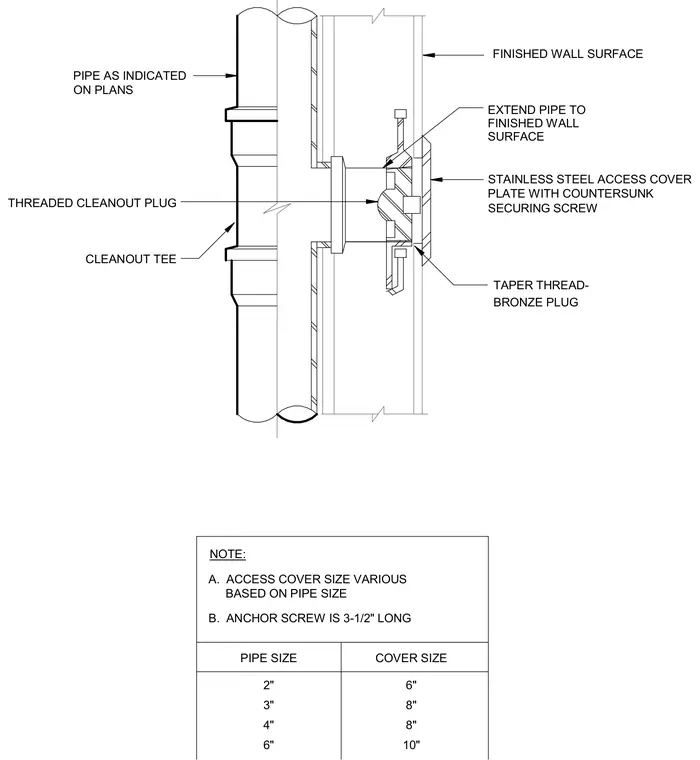

A. ACCESS COVER SIZE VARIOUS NOTE: BASED ON PIPE SIZE PIPE SIZE COVER SIZE 2" 6" 3" 8" 4" 8" 6" 10" B. ANCHOR SCREW IS 3-1/2" LONG STAINLESS STEEL ACCESS COVER PLATE WITH COUNTERSUNK SECURING SCREW PIPE AS INDICATED ON PLANS CLEANOUT TEE FINISHED WALL SURFACE TAPER THREAD- BRONZE PLUG THREADED CLEANOUT PLUG EXTEND PIPE TO FINISHED WALL SURFACE
