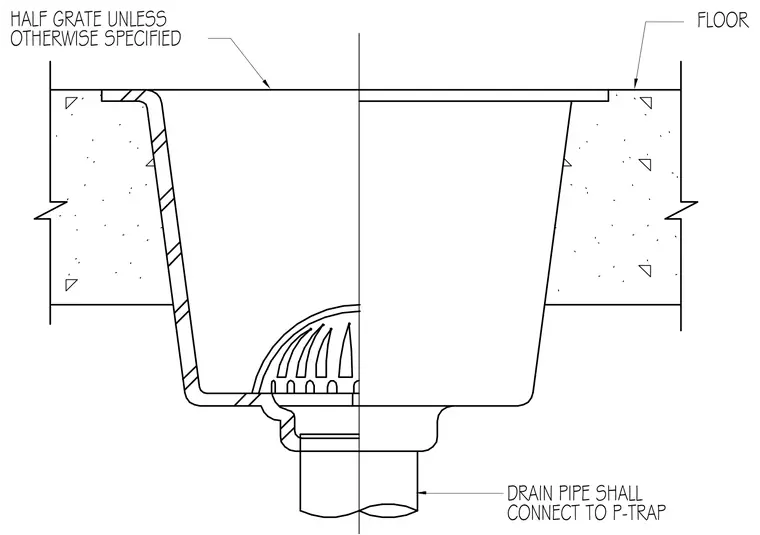

A floor drain body is cast into a concrete slab with the top rim flush with the finished floor level. The drain features a half grate unless otherwise specified. A drain pipe connects from the bottom outlet of the drain body to a P-trap below.
