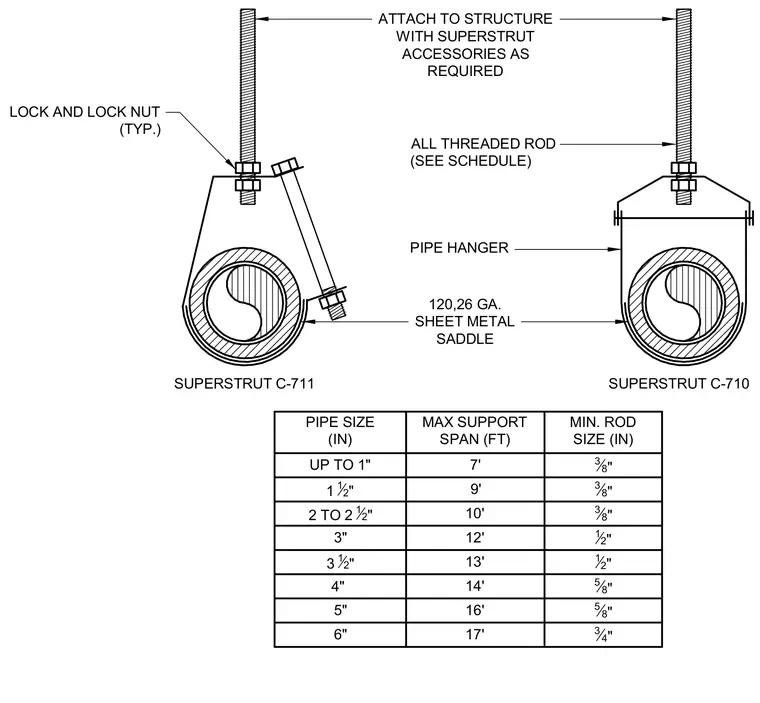

Suspended pipe support assembly utilizing a pipe hanger secured by an all threaded rod fastened to the overhead structure with Superstrut accessories. A twenty-six gauge sheet metal saddle wraps the pipe to protect the insulation and distribute the load. The hanger is secured using typical lock nuts on the threaded rod. A sizing schedule dictates the maximum support span and minimum rod size for pipe diameters ranging from up to one inch to six inches.
PIPE SIZE (IN) MAX SUPPORT SPAN (FT) MIN. ROD SIZE (IN) UP TO 1" 1 1 2 " 2 TO 2 1 2 " 3" 3 1 2 " 4" 5" 6" 17' 16' 14' 13' 12' 10' 9' 7' 38 " 38 " 38 " 12 " 12 " 5 8 " 5 8 " 3 4 " LOCK AND LOCK NUT (TYP.) ATTACH TO STRUCTURE WITH SUPERSTRUT ACCESSORIES AS REQUIRED SUPERSTRUT C-711 ALL THREADED ROD (SEE SCHEDULE) PIPE HANGER 120,26 GA. SHEET METAL SADDLE SUPERSTRUT C-710
