A sewer main connects to a two-way cleanout assembly extending up to finished grade. Each cleanout features a cast iron cleanout in a flanged housing with a heavy-duty cast-iron cover, typically two per assembly. A minimum 18-inch by 18-inch by 4-inch concrete collar surrounds the housing unless surface concrete is used. The surrounding concrete surface is sloped and maintained at a minimum thickness of 4 inches from the building cleanout to grade.

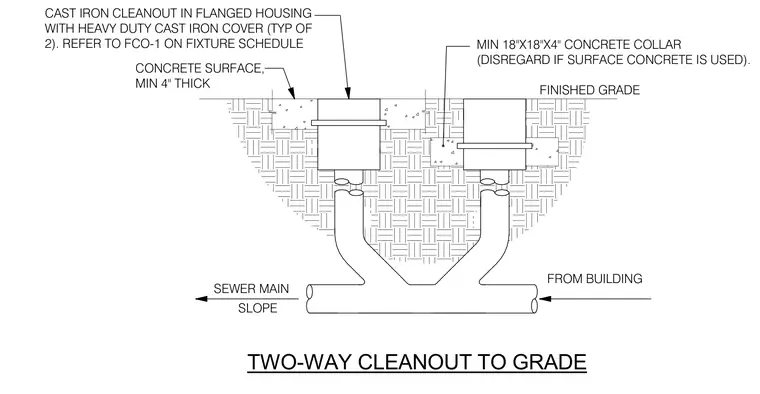

MIN 18"X18"X4" CONCRETE COLLAR (DISREGARD IF SURFACE CONCRETE IS USED). SEWER MAIN CAST IRON CLEANOUT IN FLANGED HOUSING WITH HEAVY DUTY CAST IRON COVER (TYP OF 2). REFER TO FCO-1 ON FIXTURE SCHEDULE SLOPE CONCRETE SURFACE, MIN 4" THICK FROM BUILDING TWO-WAY CLEANOUT TO GRADE FINISHED GRADE
