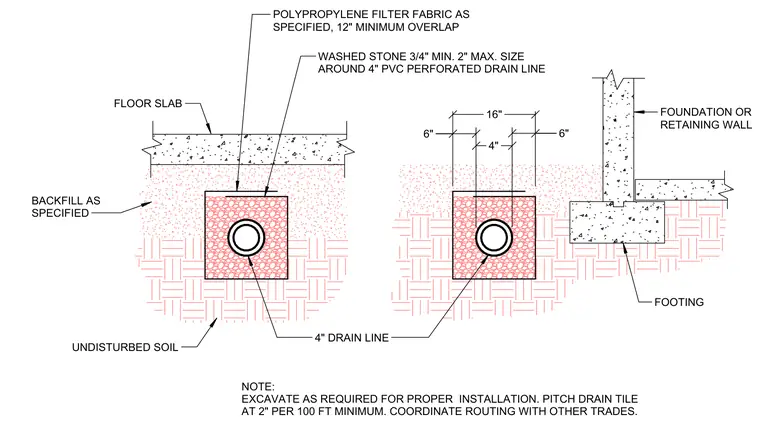

A 4-inch PVC perforated drain line is bedded in washed stone measuring three-quarters of an inch minimum to two inches maximum in size. The stone bed is wrapped with polypropylene filter fabric featuring a 12-inch minimum overlap. The entire assembly sits on undisturbed soil adjacent to a concrete foundation or retaining wall and beneath a concrete floor slab. Specified backfill is compacted over the wrapped stone trench. The drain tile is pitched at two inches per one hundred feet minimum.
BACKFILL AS SPECIFIED 16" 4" 6" 6" FOOTING NOTE: EXCAVATE AS REQUIRED FOR PROPER INSTALLATION. PITCH DRAIN TILE AT 2" PER 100 FT MINIMUM. COORDINATE ROUTING WITH OTHER TRADES. POLYPROPYLENE FILTER FABRIC AS SPECIFIED, 12" MINIMUM OVERLAP WASHED STONE 3/4" MIN. 2" MAX. SIZE AROUND 4" PVC PERFORATED DRAIN LINE FLOOR SLAB UNDISTURBED SOIL FOUNDATION OR RETAINING WALL 4" DRAIN LINE
