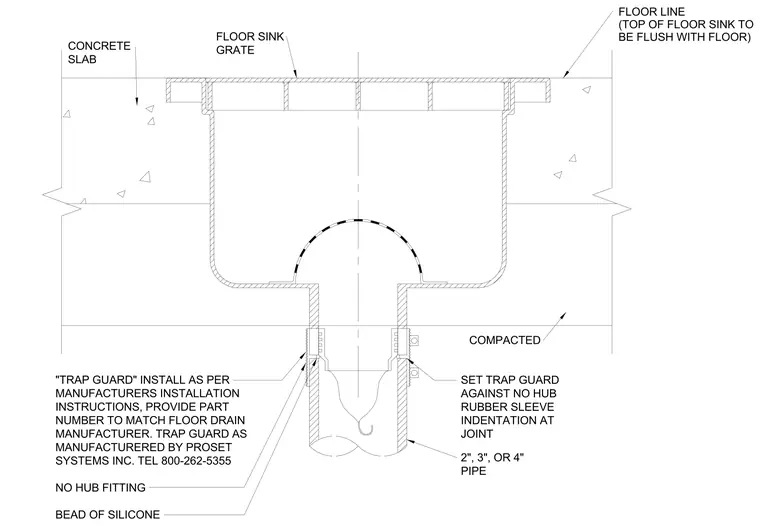

A floor sink is installed flush with the finished floor line within a concrete slab over compacted subgrade. The floor sink body receives a floor sink grate set level with the surrounding floor. The outlet connects to a two-, three-, or four-inch pipe via a no-hub fitting secured with a rubber sleeve and indentation at the joint. A ProSet Systems trap guard is installed inside the drain according to the manufacturer's instructions. A bead of silicone seals the joint between the components.
COMPACTED 2", 3", OR 4" CONCRETE FLOOR SINK SLAB GRATE SET TRAP GUARD AGAINST NO HUB RUBBER SLEEVE INDENTATION AT JOINT "TRAP GUARD" INSTALL AS PER MANUFACTURERS INSTALLATION NUMBER TO MATCH FLOOR DRAIN MANUFACTURER. TRAP GUARD AS MANUFACTURERED BY PROSET PIPE INSTRUCTIONS, PROVIDE PART SYSTEMS INC. TEL 800-262-5355 NO HUB FITTING BEAD OF SILICONE FLOOR LINE (TOP OF FLOOR SINK TO BE FLUSH WITH FLOOR)
