Plumbing · P-VY8XX

Sump Pump Details

Materials

Elements

About this detail

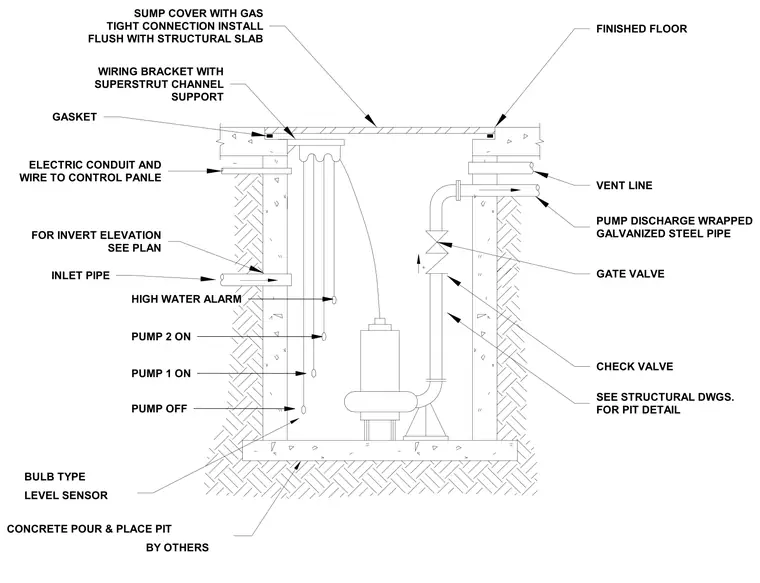

A concrete sump pit is installed flush with the structural slab and finished floor, utilizing a cast-in-place concrete pit per structural drawings. A gas-tight sump cover is installed with a gasket over the opening, supported by a wiring bracket with a Superstrut channel. Inside the pit, bulb-type level sensors hang from brackets to control high water alarms, pump one on, pump two on, and pump off functions. An inlet pipe enters the pit at an invert elevation determined by plan, while electric conduit and wire route to the control panel by others. The submersible pump connects to a wrapped galvanized steel pipe discharge line equipped with a check valve and a gate valve, alongside a separate vent line.
