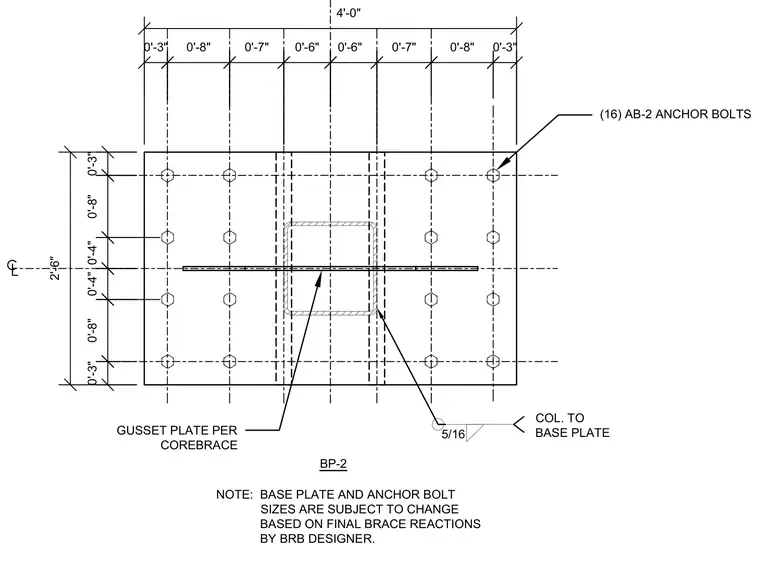

A structural column base plate designated BP-2 connects to a steel column using five-sixteenth inch fillet welds. Sixteen AB-2 anchor bolts secure the base plate in a rectangular pattern configured around the column profile. A gusset plate supplied per CoreBrace is integrated for buckling-restrained bracing attachment. Base plate and anchor bolt dimensions remain subject to change based on final brace reactions provided by the BRB designer.
4'-0" 2'-6" 0'-3" 0'-4" 0'-3" 0'-3" 0'-7" 0'-7" 0'-8" 5/16 (16) AB-2 ANCHOR BOLTS COL. TO BASE PLATE BP-2 0'-8" 0'-3" GUSSET PLATE PER COREBRACE 0'-6" 0'-6" 0'-8" 0'-4" 0'-8" BASE PLATE AND ANCHOR BOLT SIZES ARE SUBJECT TO CHANGE BASED ON FINAL BRACE REACTIONS BY BRB DESIGNER. NOTE:
