Grease Interceptor Detail

About this detail

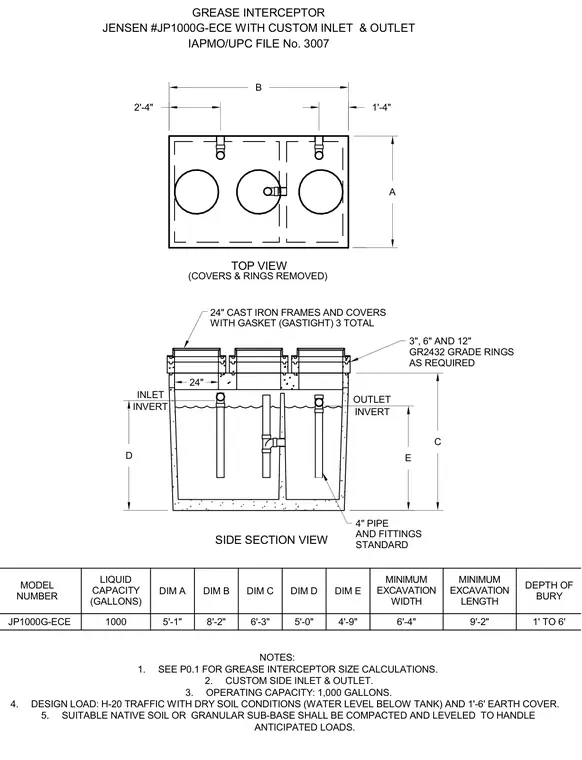

The Jensen model JP1000G-ECE grease interceptor features a 1,000-gallon operating capacity with custom side inlet and outlet configurations. Three 24-inch gastight cast iron frames and covers sit atop three, six, and twelve-inch grade rings as required. Four-inch pipe and fittings connect internally within the multi-compartment precast concrete tank. The design accommodates H-20 traffic loads with dry soil conditions and earth cover ranging from one to six feet over a compacted granular sub-base.
