An ADA door actuator is mounted to a pedestal featuring a one-quarter-inch-thick aluminum bollard mounting bracket. The assembly is secured to the substrate using one-half-inch by two-and-three-quarter-inch heavy-duty masonry anchors requiring a minimum engagement depth of one and one-quarter inches. One-quarter-20 stainless steel flat head machine screws fasten the bracket components together. A National Electrical Code Class II circuit is provided by others.

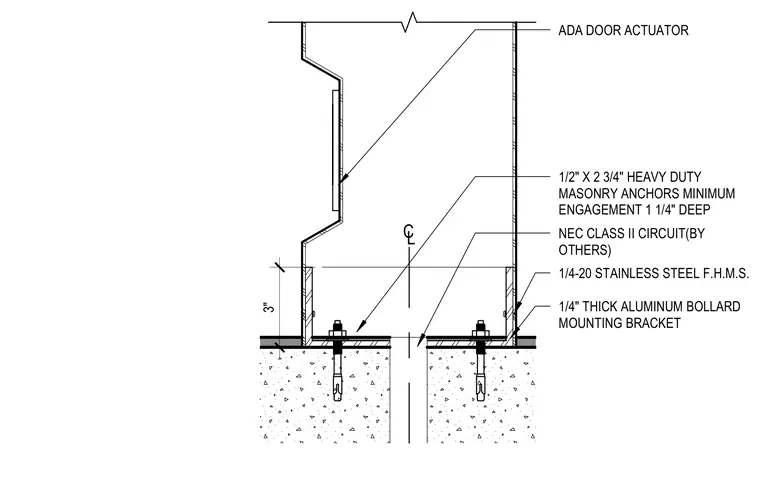

3" 1/2" X 2 3/4" HEAVY DUTY MASONRY ANCHORS MINIMUM ENGAGEMENT 1 1/4" DEEP NEC CLASS II CIRCUIT(BY OTHERS) 1/4-20 STAINLESS STEEL F.H.M.S. 1/4" THICK ALUMINUM BOLLARD MOUNTING BRACKET CL ADA DOOR ACTUATOR
