Trap Primer Detail - Multiple Hookups

Materials

Elements

Floors / Slabs Drainage Millwork / Casework Connections / Plates Reinforcing

About this detail

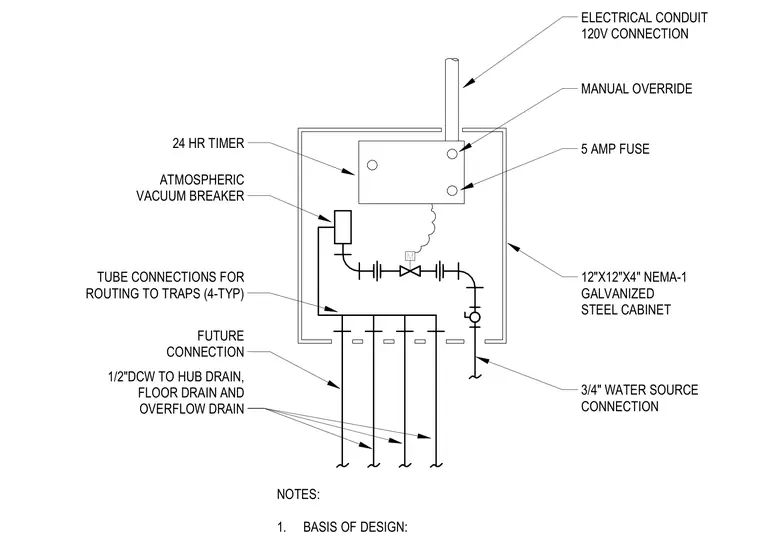

An electronic trap primer system is housed within a twelve-by-twelve-by-four-inch NEMA-1 galvanized steel cabinet with a 120-volt electrical conduit connection entering from the top. The interior features a control unit equipped with a twenty-four-hour timer, a manual override, a five-amp fuse, and an atmospheric vacuum breaker. A three-quarter-inch water source connection supplies the unit, which distributes water through four typical tube connections for routing to traps. Additional provisions include a future connection and half-inch domestic cold water lines routed to a hub drain, floor drain, and overflow drain.
