Steel Joist Bearing and Anchorage at Tilt-Up Wall

Materials

Elements

About this detail

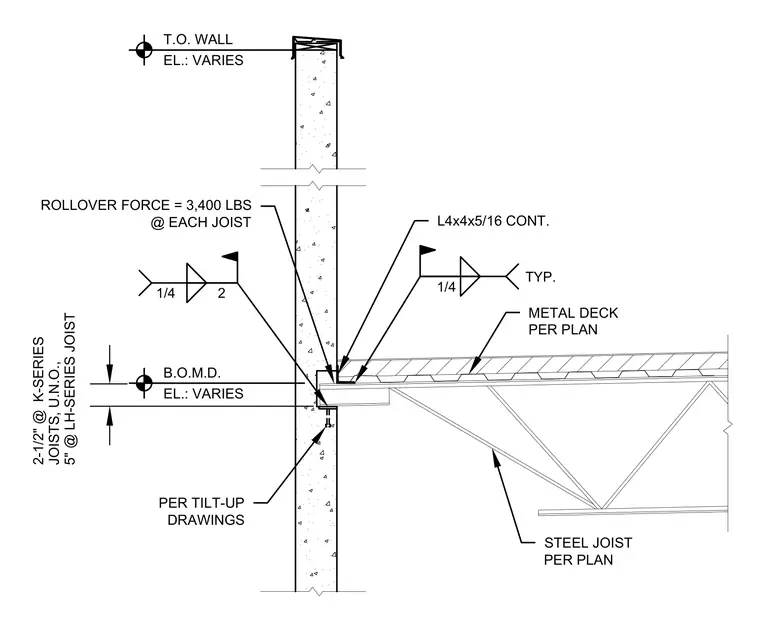

An open-web steel joist bears onto a tilt-up concrete wall assembly, with metal deck spanning per plan. A continuous L4x4x5/16 angle is embedded or anchored at the wall connection, welded with quarter-inch fillets typical. The connection accounts for a rollover force of 3,400 pounds at each joist location. Vertical clearances are specified as 2-1/2 inches for K-series joists unless noted otherwise, and 5 inches for LH-series joists.
