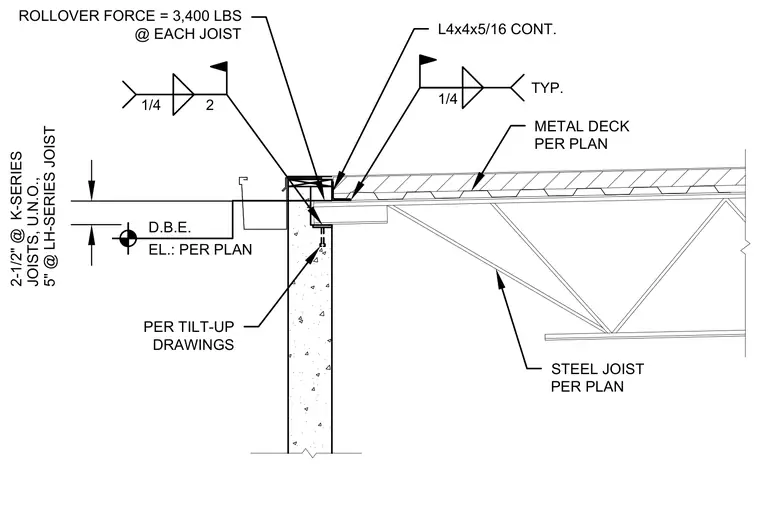

A steel joist bears on a concrete tilt-up wall with an elevation sized per plan. A continuous L4x4x5/16 angle connects to the assembly with a one-quarter-inch fillet weld typically. Metal deck per plan rests above with a rollover force of 3,400 pounds at each joist. Clearances measure 2-1/2 inches for K-series joists unless noted otherwise, and 5 inches for LH-series joists.
EL.: PER PLAN D.B.E. STEEL JOIST PER PLAN METAL DECK PER PLAN L4x4x5/16 CONT. 1/4 TYP. PER TILT-UP DRAWINGS ROLLOVER FORCE = 3,400 LBS @ EACH JOIST 2-1/2" @ K-SERIES JOISTS, U.N.O., 5" @ LH-SERIES JOIST 1/4 2
