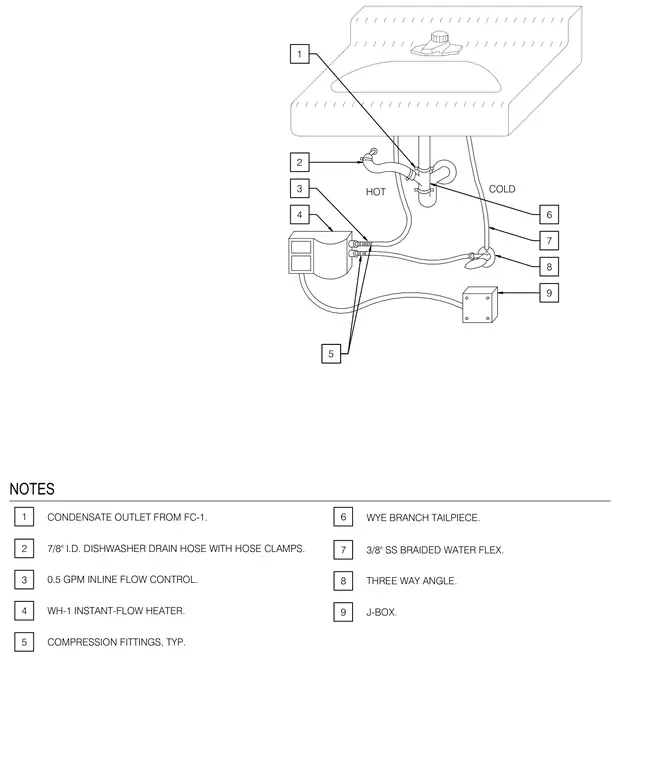

An instant-flow water heater connects to the plumbing assembly via compression fittings and stainless steel braided water flexible lines. A condensate outlet from the fan coil unit runs through a seven-eighths inch inner diameter dishwasher drain hose secured with hose clamps. The drainage system incorporates a wye branch tailpiece. A three-way angle valve supplies water alongside an inline flow control valve. Electrical power is supplied through a junction box.
HOT COLD NOTES CONDENSATE OUTLET FROM FC-1. 7/8" I.D. DISHWASHER DRAIN HOSE WITH HOSE CLAMPS. 0.5 GPM INLINE FLOW CONTROL. WH-1 INSTANT-FLOW HEATER. COMPRESSION FITTINGS, TYP. WYE BRANCH TAILPIECE. 3/8" SS BRAIDED WATER FLEX. THREE WAY ANGLE. J-BOX. 6 7 8 9 1 2 3 4 5 2 1 3 4 5 6 7 8 9
