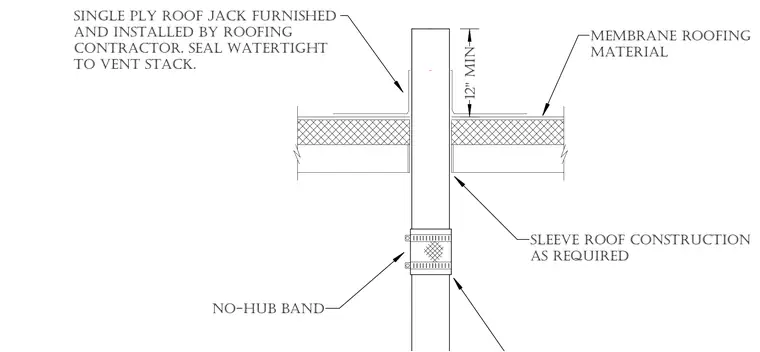

A plumbing vent pipe penetrates a membrane roof assembly with a required roof sleeve and a single-ply roof jack furnished and installed by the roofing contractor. The roof jack seals watertight to the vent stack, maintaining a twelve-inch minimum clearance. A no-hub band secures the pipe connection below the roof deck.
SLEEVE ROOF CONSTRUCTION AS REQUIRED SINGLE PLY ROOF JACK FURNISHED AND INSTALLED BY ROOFING CONTRACTOR. SEAL WATERTIGHT TO VENT STACK. MEMBRANE ROOFING MATERIAL NO-HUB BAND 12" MIN
