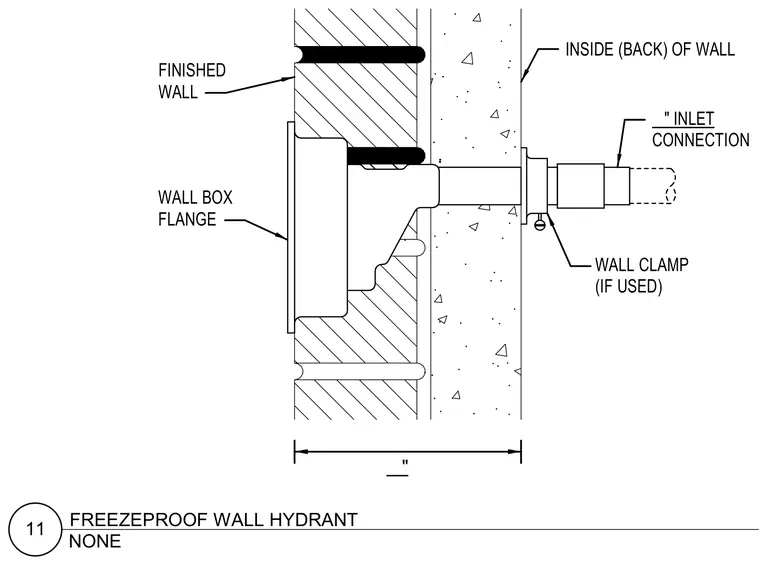

A freezeproof wall hydrant penetrates the finished wall with a wall box flange on the exterior face. An inlet connection extends to the inside back of the wall, secured by an optional wall clamp.
INSIDE (BACK) OF WALL WALL BOX FLANGE WALL CLAMP (IF USED) FINISHED WALL " " INLET CONNECTION NONE 11 FREEZEPROOF WALL HYDRANT
