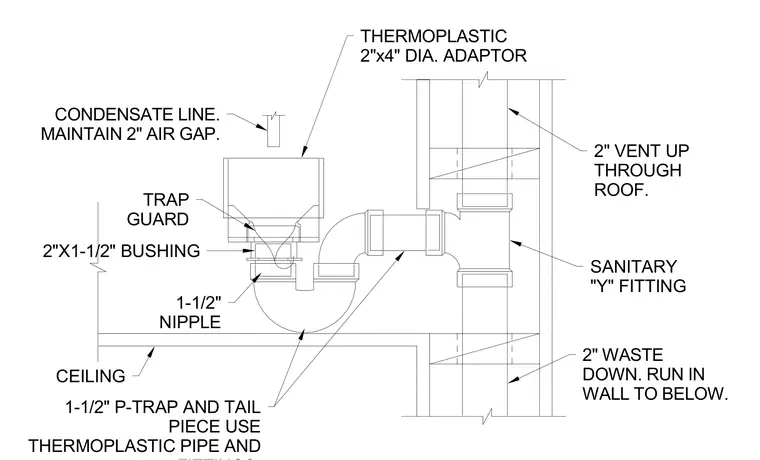

A condensate line discharges into a funnel drain with a thermoplastic 2" by 4" diameter adaptor while maintaining a 2" air gap. The drain assembly includes a trap guard, a 2" x 1-1/2" bushing, a 1-1/2" nipple, and a 1-1/2" P-trap with tailpiece constructed of thermoplastic pipe. Waste connects through a sanitary "Y" fitting to a 2" waste pipe running down in the wall, while a 2" vent extends up through the roof.
THERMOPLASTIC 2"x4" DIA. ADAPTOR 2" VENT UP THROUGH ROOF. SANITARY "Y" FITTING 2" WASTE DOWN. RUN IN WALL TO BELOW. 1-1/2" P-TRAP AND TAIL PIECE USE THERMOPLASTIC PIPE AND CEILING 1-1/2" NIPPLE 2"X1-1/2" BUSHING TRAP GUARD CONDENSATE LINE. MAINTAIN 2" AIR GAP.
