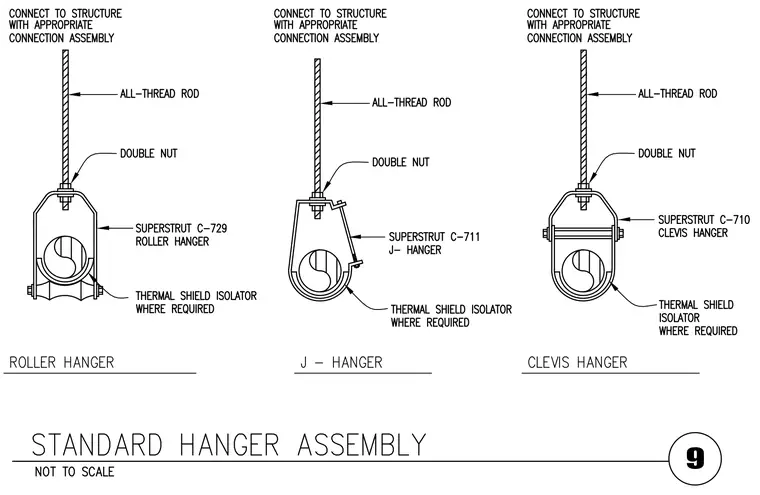

These standard hanger assemblies suspend piping systems from overhead structure using all-thread rods secured with double nuts at the top connection. The roller hanger utilizes a Superstrut C-729 roller hanger with thermal shield isolators where required. The J-hanger consists of a Superstrut C-711 J-hanger wrapping beneath the insulated pipe. The clevis hanger features a Superstrut C-710 clevis hanger with a through-bolt closing the bottom yoke. Each hanger connects to the overhead structure using an appropriate connection assembly.
