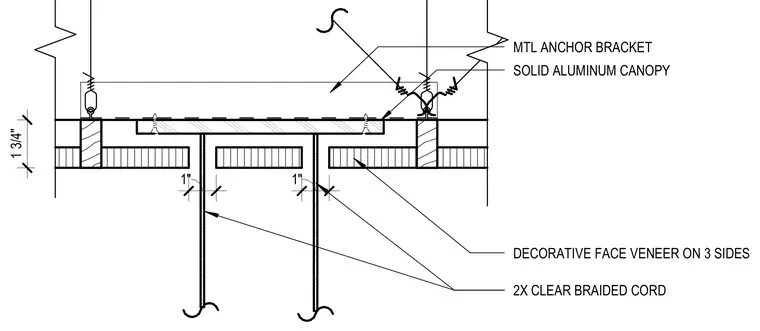

A solid aluminum canopy is secured using metal anchor brackets and suspended by two clear braided cords with a 1-3/4" dimension gap. The assembly incorporates a decorative face veneer applied on three sides, maintained with 1" clearances.
DECORATIVE FACE VENEER ON 3 SIDES SOLID ALUMINUM CANOPY 2X CLEAR BRAIDED CORD MTL ANCHOR BRACKET 1 3/4" 1" 1"
