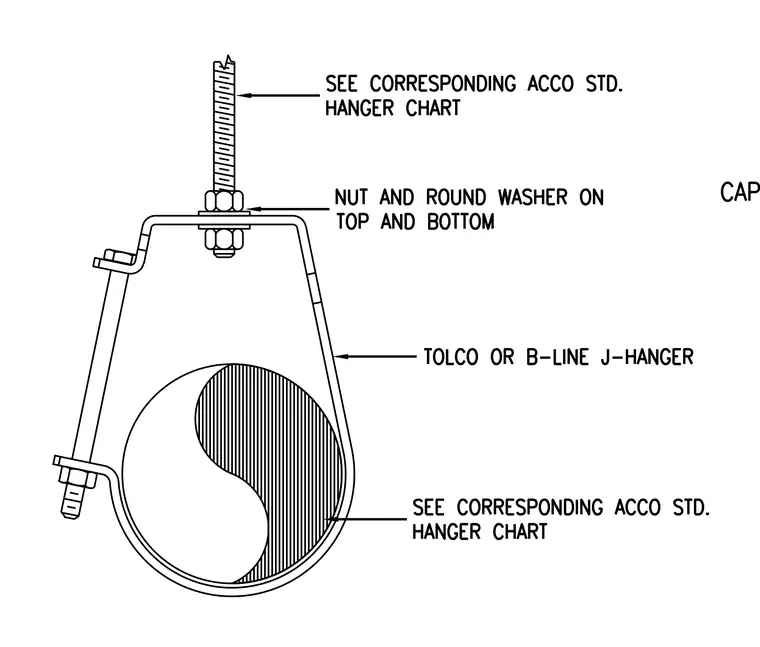

A Tolco or B-Line J-hanger supports a suspended pipe with sizing per the corresponding ACCO standard hanger chart. The hanger attaches to a vertical threaded rod secured with a nut and round washer on both top and bottom.
