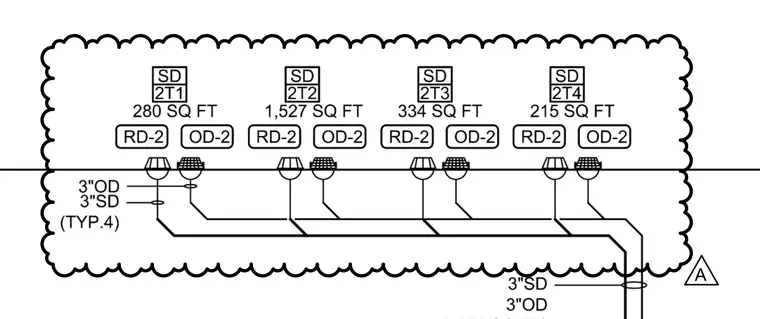

Roof drainage layout showing roof drains and overflow drains connected via three-inch outside diameter and three-inch storm drain piping. Each roof area features designated square footage values with corresponding drain designations. Piping runs combine and route to main building drainage risers.
