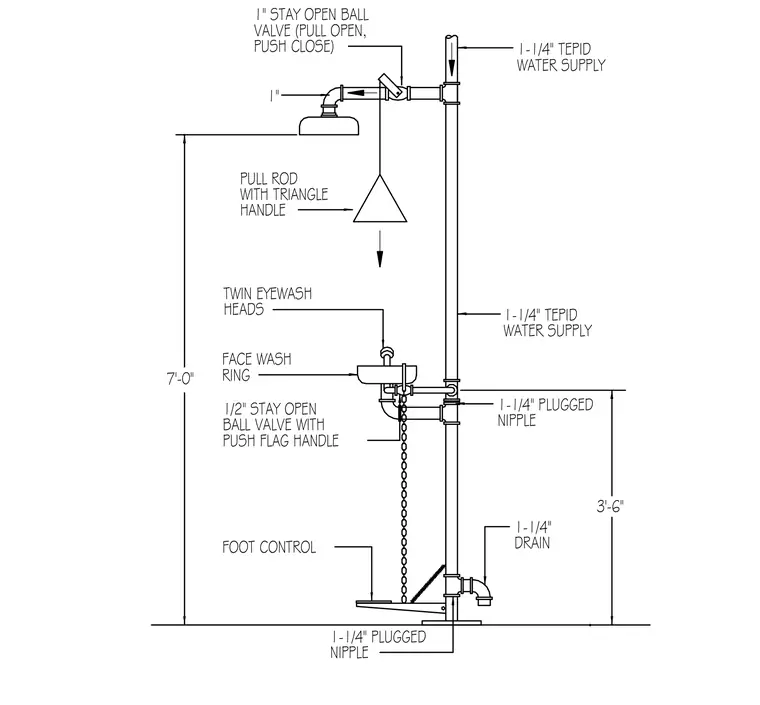

An emergency combination shower and eyewash unit is supplied by a 1-1/4 inch tepid water line. The overhead drench shower features a 1-inch stay-open ball valve operated by a pull rod with a triangle handle, positioned at 7 feet above the finished floor. The twin eyewash heads and face wash ring are controlled by a 1/2-inch stay-open ball valve with a push flag handle and a foot control pedal. A 1-1/4 inch plugged nipple and drain handle wastewater at the base of the upright standpipe.
7'-0" 1-1/4" PLUGGED NIPPLE PUSH FLAG HANDLE BALL VALVE WITH 1/2" STAY OPEN RING FACE WASH HEADS TWIN EYEWASH 1" PUSH CLOSE) VALVE (PULL OPEN, 1" STAY OPEN BALL HANDLE WITH TRIANGLE PULL ROD NIPPLE 1-1/4" PLUGGED DRAIN 1-1/4" 3'-6" 1-1/4" TEPID WATER SUPPLY WATER SUPPLY 1-1/4" TEPID FOOT CONTROL
