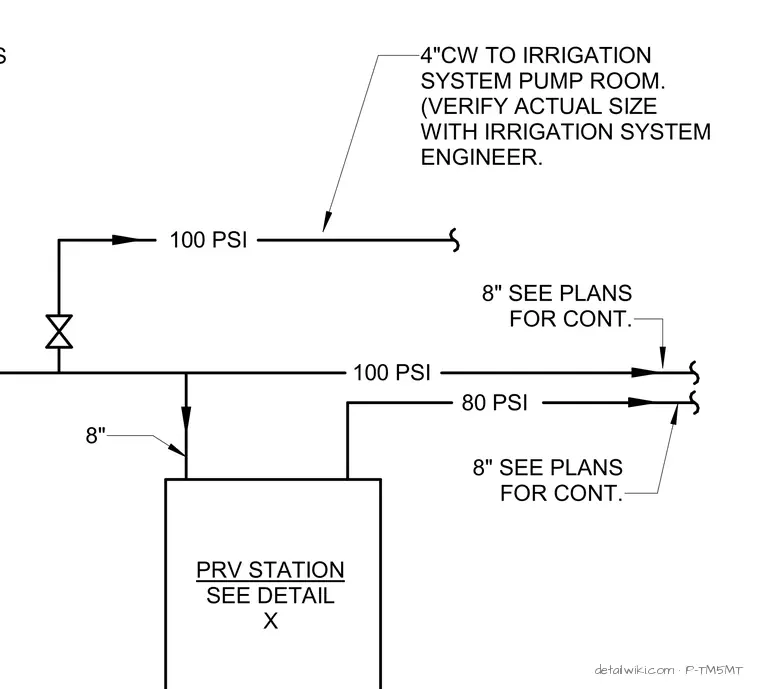

The schematic details a booster pump system and an 8-inch pressure reducing valve station connected to a cold water supply. A 4-inch cold water line routes to the irrigation system pump room, with the actual size subject to verification by the irrigation system engineer. Pressure ratings of 80 PSI and 100 PSI are indicated for respective branch lines. Continuation of the 8-inch piping is referenced to the project plans, alongside a connection designated as PRV station detail X.
80 PSI 8" PRV STATION SEE DETAIL X 8" SEE PLANS FOR CONT. BOOSTER PUMP SYSTEM SHALL BE AS 100 PSI 100 PSI 4"CW TO IRRIGATION SYSTEM PUMP ROOM. (VERIFY ACTUAL SIZE WITH IRRIGATION SYSTEM ENGINEER. 8" SEE PLANS FOR CONT.
