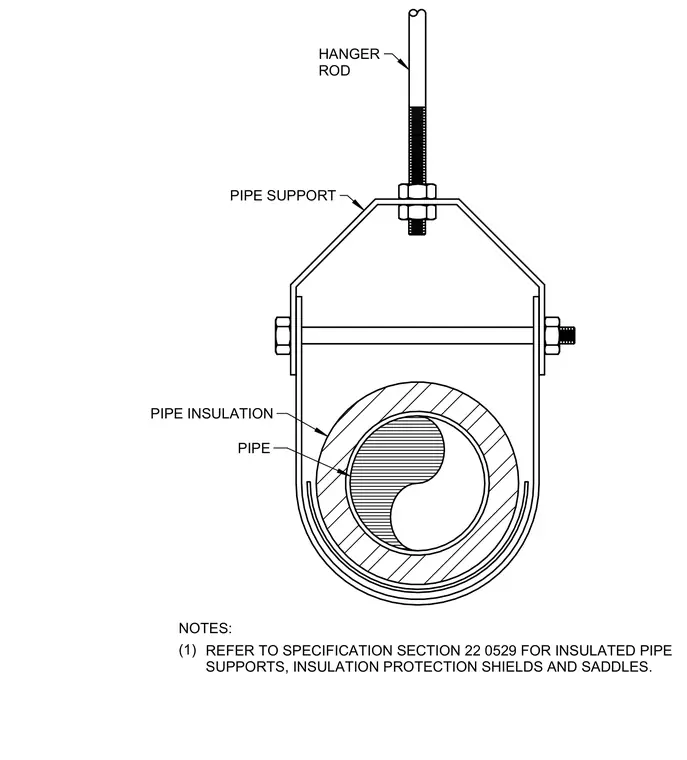

An insulated pipe is suspended by a threaded hanger rod secured to a formed metal pipe support. The pipe support cradles the insulated piping system and is fastened with a through-bolt and hex nut assembly. Specification requirements direct attention to section twenty-two zero five twenty-nine for insulated pipe supports, insulation protection shields, and saddles.
NOTES: (1) REFER TO SPECIFICATION SECTION 22 0529 FOR INSULATED PIPE SUPPORTS, INSULATION PROTECTION SHIELDS AND SADDLES. HANGER ROD PIPE SUPPORT PIPE INSULATION PIPE
