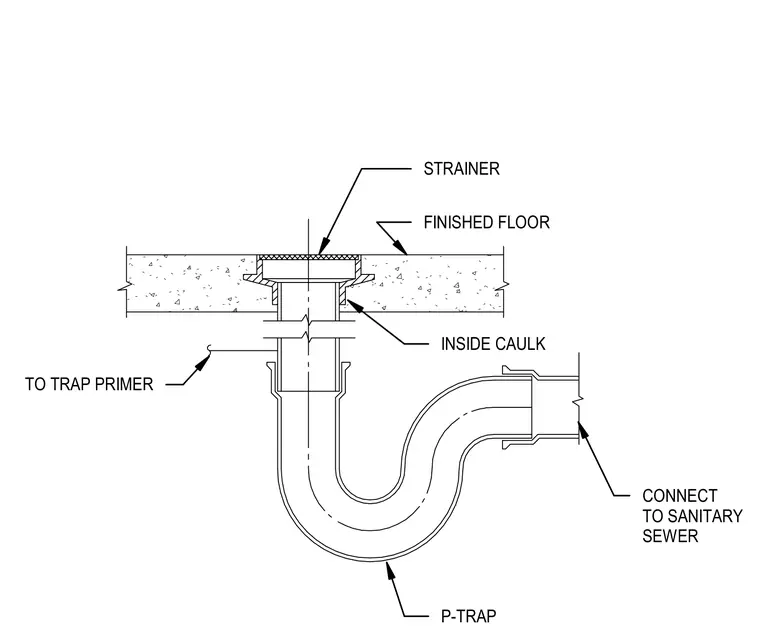

A floor drain with a strainer is set flush into the finished floor slab, secured with inside caulk. The drain drop connects to a P-trap below the slab, with a branch line provided for a trap primer. The outlet from the P-trap extends horizontally to connect to the sanitary sewer system.
P-TRAP FINISHED FLOOR INSIDE CAULK STRAINER CONNECT TO SANITARY SEWER TO TRAP PRIMER
