Three-inch cold water piping runs below grade and rises into the building interior adjacent to the exterior wall. A shutoff valve and a pressure reducing valve set to 80 PSI maximum control the line before it feeds a hose bibb equipped with a non-removable vacuum breaker at approximately 28 inches above the finished floor. Three-inch cold water piping also continues vertically within the exterior wall assembly. Footing locations and dimensions must be coordinated with structural drawings.

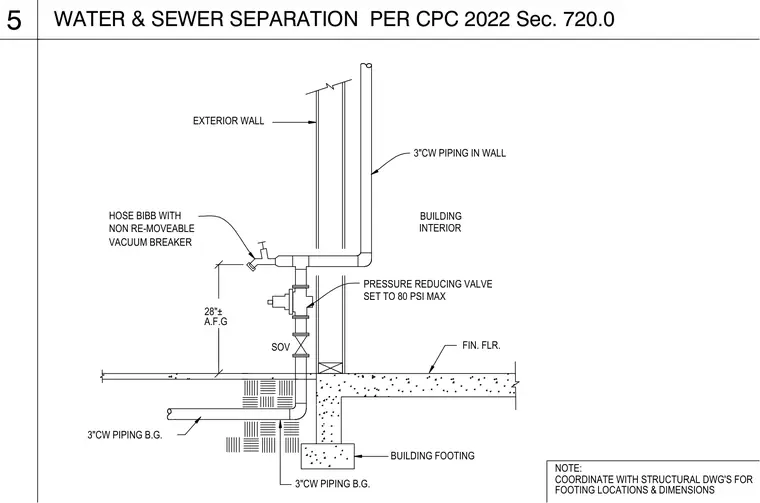

NOTE: COORDINATE WITH STRUCTURAL DWG'S FOR FOOTING LOCATIONS & DIMENSIONS 3"CW PIPING B.G. 28"± A.F.G BUILDING FOOTING HOSE BIBB WITH NON RE-MOVEABLE SOV VACUUM BREAKER PRESSURE REDUCING VALVE SET TO 80 PSI MAX EXTERIOR WALL 3"CW PIPING IN WALL 3"CW PIPING B.G. INTERIOR BUILDING FIN. FLR. 5 WATER & SEWER SEPARATION PER CPC 2022 Sec. 720.0
