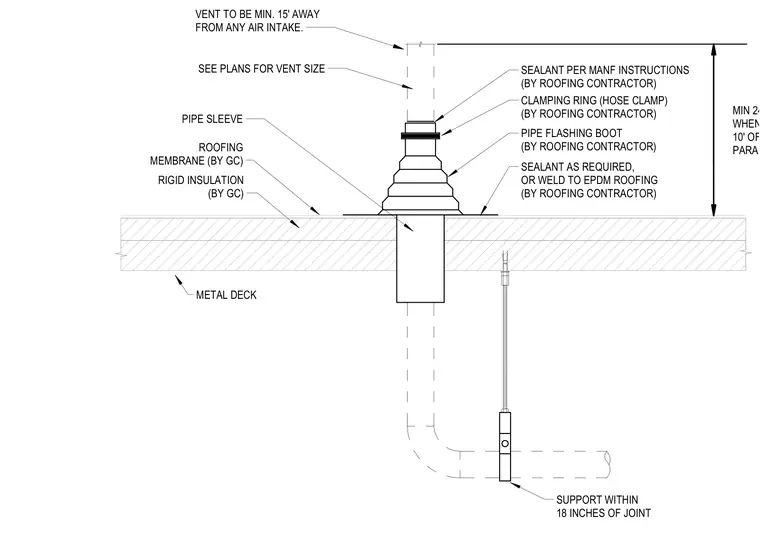

A sanitary vent pipe penetrates a metal deck roof assembly carrying rigid insulation and a roofing membrane installed by the general contractor. A pipe sleeve passes through the roof deck, fitted with a pipe flashing boot and secured with a clamping ring and hose clamp. Sealant is applied per manufacturer instructions, or welded to the EPDM roofing by the roofing contractor. The vent pipe maintains a minimum twenty-four inch height above the finished floor when within ten feet of a roof parapet, and remains positioned at least fifteen feet away from any air intake. An interior pipe support hanger is located within eighteen inches of the pipe joint.
SEE PLANS FOR VENT SIZE ROOFING MEMBRANE (BY GC) RIGID INSULATION (BY GC) CLAMPING RING (HOSE CLAMP) (BY ROOFING CONTRACTOR) PIPE FLASHING BOOT (BY ROOFING CONTRACTOR) SEALANT PER MANF INSTRUCTIONS (BY ROOFING CONTRACTOR) SEALANT AS REQUIRED, OR WELD TO EPDM ROOFING (BY ROOFING CONTRACTOR) METAL DECK PIPE SLEEVE SUPPORT WITHIN 18 INCHES OF JOINT MIN 24" AFF WHEN WITHIN 10' OF ROOF PARAPET VENT TO BE MIN. 15' AWAY FROM ANY AIR INTAKE.
