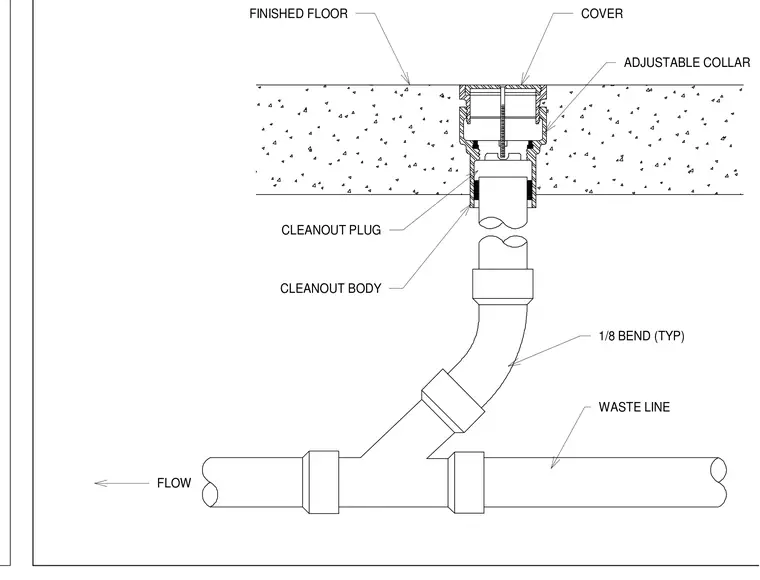

An adjustable collar sits flush with the finished floor surface, housing a cover and a cleanout plug threaded into a cleanout body. The cleanout body connects to a waste line below the slab via typical one-eighth bends and a wye fitting oriented in the direction of flow.
1/8 BEND (TYP) ADJUSTABLE COLLAR COVER FINISHED FLOOR CLEANOUT PLUG CLEANOUT BODY FLOW WASTE LINE
