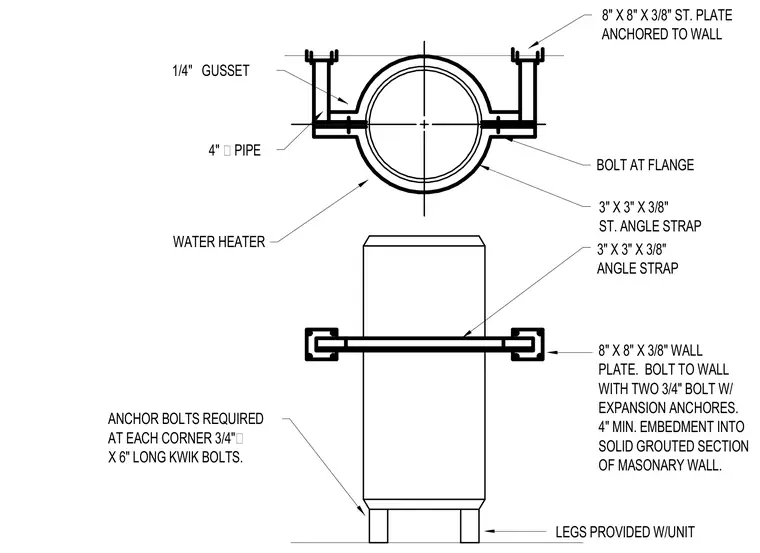

A water heater support assembly is anchored to a masonry wall. The water heater is encircled by 3" x 3" x 3/8" steel angle straps connected at the flanges with bolts. A 1/4" steel gusset reinforces the connection to 8" x 8" x 3/8" steel plates. These wall plates are secured to a solid grouted section of the masonry wall using two 3/4" diameter expansion anchors with a 4" minimum embedment. Additionally, the unit rests on legs provided with the unit, secured at each corner with 3/4" diameter by 6" long Kwik bolts.
ANCHORED TO WALL 8" X 8" X 3/8" ST. PLATE 4" ∅ PIPE BOLT AT FLANGE ST. ANGLE STRAP 3" X 3" X 3/8" 1/4" GUSSET WATER HEATER X 6" LONG KWIK BOLTS. AT EACH CORNER 3/4"∅ ANCHOR BOLTS REQUIRED ANGLE STRAP 3" X 3" X 3/8" OF MASONARY WALL. SOLID GROUTED SECTION 4" MIN. EMBEDMENT INTO EXPANSION ANCHORES. WITH TWO 3/4" BOLT W/ PLATE. BOLT TO WALL 8" X 8" X 3/8" WALL LEGS PROVIDED W/UNIT
