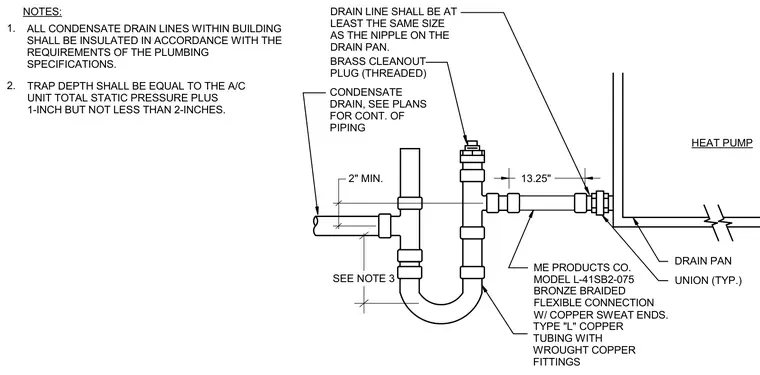

The condensate drain line connects to the heat pump drain pan using a typical union and a bronze-braided flexible connection with copper sweat ends. A threaded brass cleanout plug is provided above the trap assembly, constructed from type L copper tubing and wrought copper fittings. The drain line maintains a two-inch minimum size matching the drain pan nipple, and the trap depth equals the air conditioning unit total static pressure plus one inch, with a two-inch minimum. All interior condensate drain lines are insulated per plumbing specifications.
1. NOTES: 2. DRAIN LINE SHALL BE AT LEAST THE SAME SIZE AS THE NIPPLE ON THE DRAIN PAN. BRASS CLEANOUT PLUG (THREADED) CONDENSATE DRAIN, SEE PLANS FOR CONT. OF PIPING 2" MIN. SEE NOTE 3 13.25" HEAT PUMP DRAIN PAN UNION (TYP.) ME PRODUCTS CO. MODEL L-41SB2-075 BRONZE BRAIDED FLEXIBLE CONNECTION W/ COPPER SWEAT ENDS. TYPE "L" COPPER TUBING WITH WROUGHT COPPER FITTINGS ALL CONDENSATE DRAIN LINES WITHIN BUILDING SHALL BE INSULATED IN ACCORDANCE WITH THE REQUIREMENTS OF THE PLUMBING SPECIFICATIONS. TRAP DEPTH SHALL BE EQUAL TO THE A/C UNIT TOTAL STATIC PRESSURE PLUS 1-INCH BUT NOT LESS THAN 2-INCHES.
