Plumbing · P-T6JTP

Fire Sprinkler Standpipe Drain and Vent Penetration

Materials

Elements

Walls Roofs Floors / Slabs Decks Waterproofing / Flashing Insulation Drainage Anchors / Embeds

About this detail

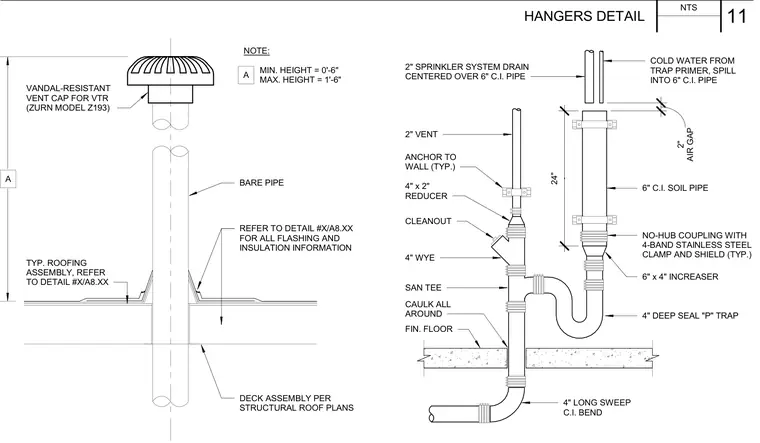

A bare pipe penetrates the typical roofing assembly and structural roof deck, topped with a vandal-resistant vent cap and governed by a minimum height of zero feet six inches and a maximum height of one foot six inches. Flashing and insulation are coordinated per architectural details, while the deck assembly follows structural roof plans. Adjacent plumbing features a two-inch sprinkler system drain centered over a six-inch cast iron pipe with a two-inch air gap and a cold water supply from a trap primer. The drain drops through a no-hub coupling with a four-band stainless steel clamp and shield, a six-by-four-inch increaser, a four-inch deep seal P trap, a sanitary tee, a four-inch wye with a cleanout, a four-by-two-inch reducer, and a two-inch vent anchored typically to the wall. The assembly transitions through the finished floor into a four-inch long sweep cast iron bend, with caulking applied all around.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
