Domestic Water Pressure Reducing Station Assembly

About this detail

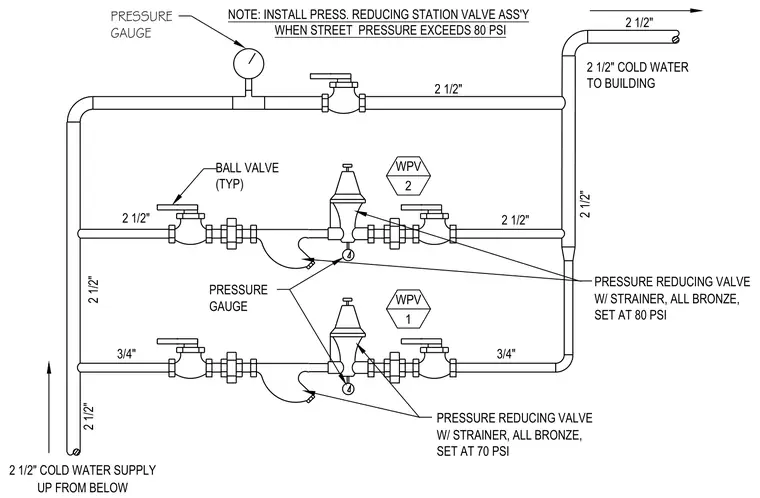

A 2 1/2-inch cold water supply line feeds upward into a parallel pressure reducing station assembly required when street pressure exceeds 80 PSI. The main branch splits through all-bronze pressure reducing valves with integral strainers, set at 70 PSI and 80 PSI respectively. Isolation ball valves are positioned upstream and downstream of each regulator for maintenance access. Pressure gauges monitor line pressures across the assembly before tying back into a 2 1/2-inch cold water main leading to the building.
