A pipe penetrates a concrete slab on grade through a pipe sleeve spanning the full thickness of the concrete. The assembly maintains a minimum one-half inch and maximum one-inch clearance around the pipe, increased to one-and-one-half inches of clearance for gas pipes. The annular space is packed with a minimum three-inch depth of fiberglass pipe insulation and sealed at the surface with a minimum one-half-inch depth of silicone sealant.

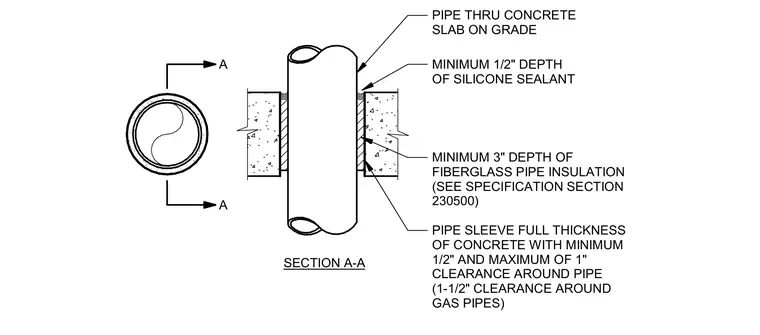

SECTION A-A A A PIPE SLEEVE FULL THICKNESS OF CONCRETE WITH MINIMUM 1/2" AND MAXIMUM OF 1" CLEARANCE AROUND PIPE (1-1/2" CLEARANCE AROUND GAS PIPES) MINIMUM 3" DEPTH OF FIBERGLASS PIPE INSULATION (SEE SPECIFICATION SECTION 230500) MINIMUM 1/2" DEPTH OF SILICONE SEALANT PIPE THRU CONCRETE SLAB ON GRADE
