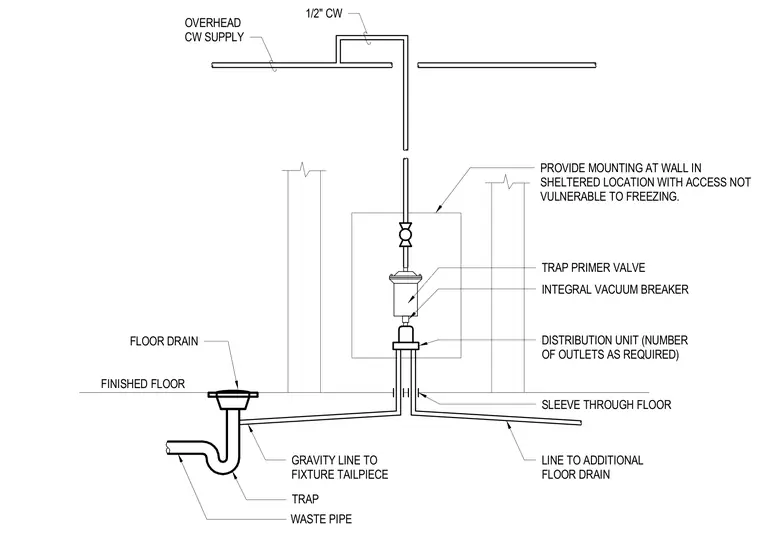

A one-half inch cold water overhead supply feeds a trap primer valve equipped with an integral vacuum breaker and wall mounting in a sheltered location not vulnerable to freezing. A distribution unit with multiple outlets routes water through sleeves in the floor via gravity lines to fixture tailpieces and additional floor drains. The waste pipe network incorporates standard traps beneath the finished floor level.
FLOOR DRAIN WASTE PIPE TRAP 1/2" CW OVERHEAD CW SUPPLY FINISHED FLOOR INTEGRAL VACUUM BREAKER PROVIDE MOUNTING AT WALL IN SHELTERED LOCATION WITH ACCESS NOT VULNERABLE TO FREEZING. DISTRIBUTION UNIT (NUMBER OF OUTLETS AS REQUIRED) GRAVITY LINE TO FIXTURE TAILPIECE TRAP PRIMER VALVE SLEEVE THROUGH FLOOR LINE TO ADDITIONAL FLOOR DRAIN
