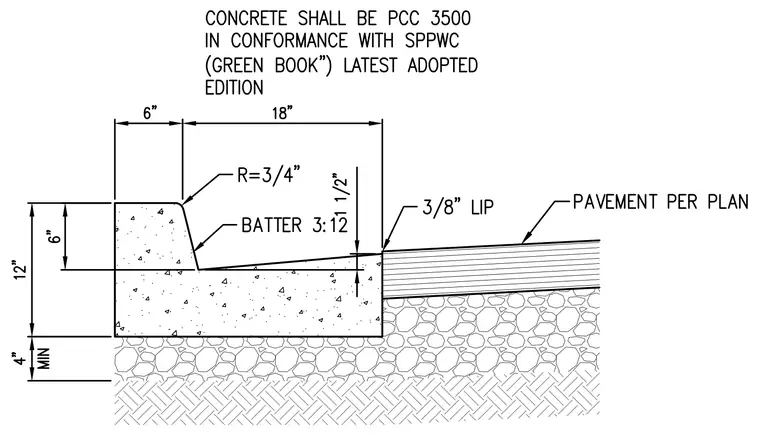

Concrete shall be Portland cement concrete 3500 psi in conformance with SPPWC green book latest adopted edition. The curb features a six-inch height, six-inch width, and a three-quarter-inch radius edge, transitioning into an eighteen-inch gutter pan with a three-to-twelve batter and a three-eighths-inch lip against the adjacent pavement per plan. The entire assembly rests on a minimum four-inch layer of crushed aggregate base over compacted subgrade.
