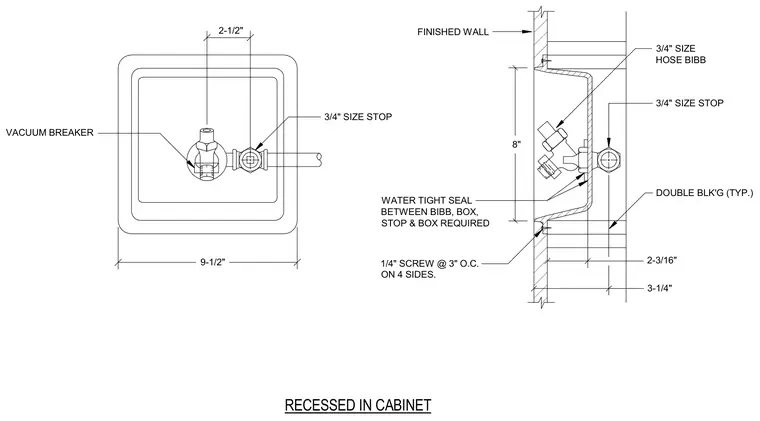

A three-quarter-inch hose bibb with an integral vacuum breaker and stop is recessed into a cabinet assembly behind the finished wall. The unit sits inside an eight-inch by nine-and-one-half-inch recessed box secured with one-quarter-inch screws spaced at three inches on center on all four sides. A watertight seal is required between the bibb, box, and stop components. Double blocking is provided typically behind the enclosure for structural support.
3/4" SIZE STOP VACUUM BREAKER 2-1/2" 9-1/2" 2-3/16" 3/4" SIZE STOP FINISHED WALL RECESSED IN CABINET WATER TIGHT SEAL BETWEEN BIBB, BOX, STOP & BOX REQUIRED 3/4" SIZE HOSE BIBB 3-1/4" DOUBLE BLK'G (TYP.) 1/4" SCREW @ 3" O.C. ON 4 SIDES. 8"
