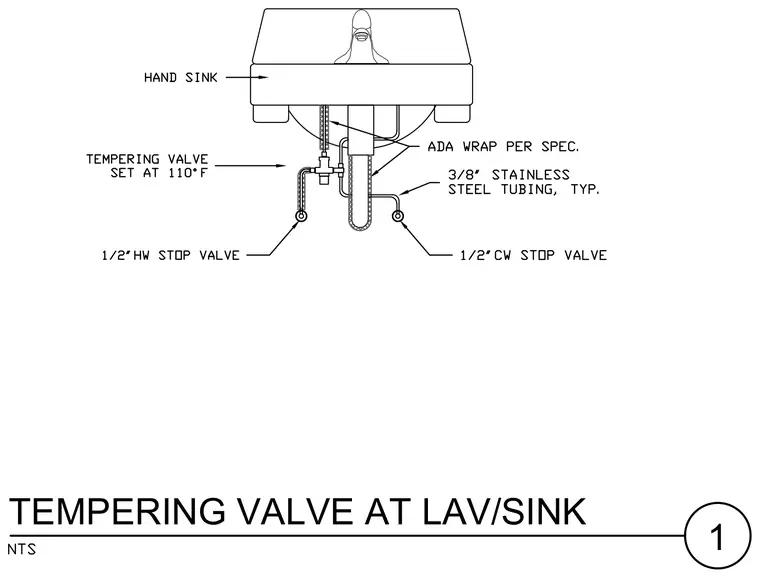

A tempering valve set at 110 degrees Fahrenheit connects to the hand sink, fed by a one-half inch hot water stop valve and a one-half inch cold water stop valve via three-eighths inch stainless steel tubing typically used throughout. An ADA wrap is installed per specifications around the P-trap assembly beneath the fixture.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
