A decorative face veneer on three sides surrounds a four and one-quarter inch concealed sprinkler head integrated with metal angles and hollow structural section or cold-formed framing. A black facing fabric layer backs the assembly.

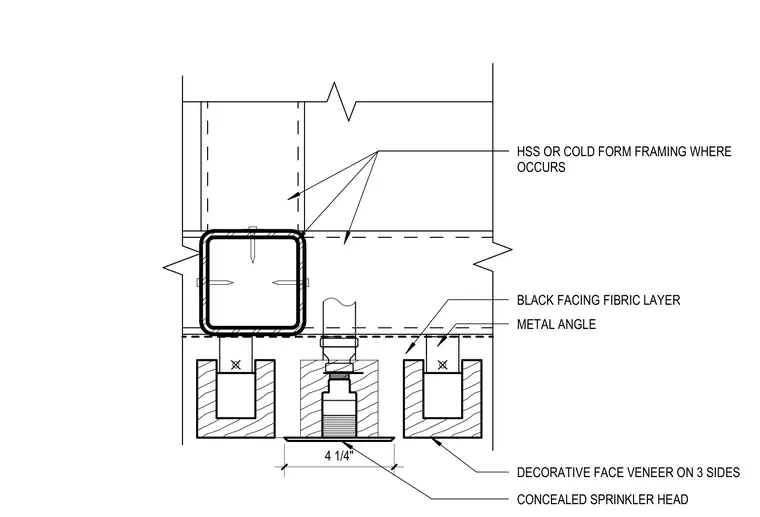

DECORATIVE FACE VENEER ON 3 SIDES BLACK FACING FIBRIC LAYER METAL ANGLE HSS OR COLD FORM FRAMING WHERE OCCURS 4 1/4" CONCEALED SPRINKLER HEAD
