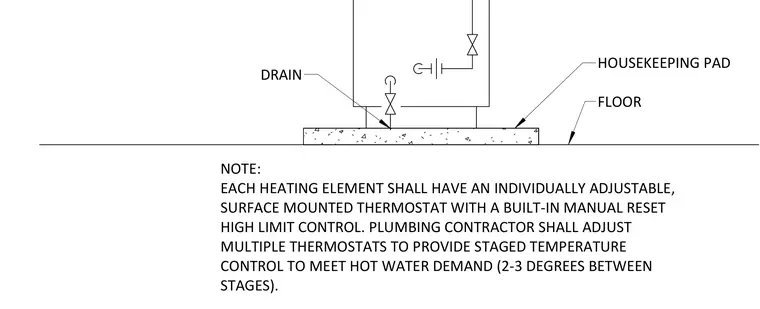

The water heater is mounted on a concrete housekeeping pad supported by the floor slab and connects to a floor drain. Plumbing connections include associated valves and piping. Each heating element requires an individually adjustable, surface-mounted thermostat equipped with a built-in manual reset high limit control. The plumbing contractor must adjust multiple thermostats to provide staged temperature control with a two to three degree differential between stages to meet hot water demand.
DRAIN HOUSEKEEPING PAD FLOOR NOTE: EACH HEATING ELEMENT SHALL HAVE AN INDIVIDUALLY ADJUSTABLE, SURFACE MOUNTED THERMOSTAT WITH A BUILT-IN MANUAL RESET HIGH LIMIT CONTROL. PLUMBING CONTRACTOR SHALL ADJUST MULTIPLE THERMOSTATS TO PROVIDE STAGED TEMPERATURE CONTROL TO MEET HOT WATER DEMAND (2-3 DEGREES BETWEEN STAGES).
