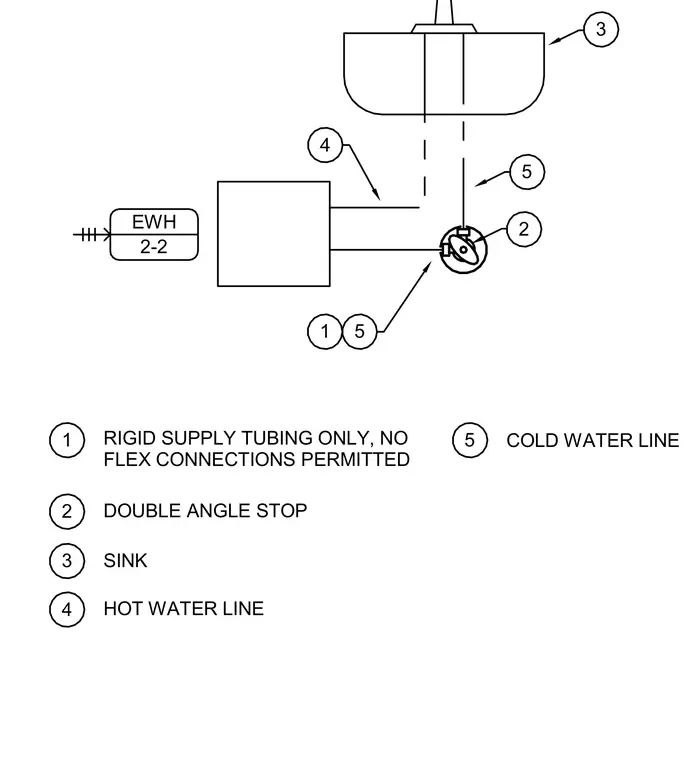

This plumbing diagram details the hot and cold water supply lines connected to an electric water heater and sink. Rigid supply tubing is required with no flexible connections permitted. A double angle stop valve controls the water flow to the sink fixtures.
COLD WATER LINE RIGID SUPPLY TUBING ONLY, NO FLEX CONNECTIONS PERMITTED DOUBLE ANGLE STOP SINK HOT WATER LINE 1 2 3 4 5 EWH 2-2 3 4 5 5 1 2
