Rooftop Pipe Support Detail

Materials

Steel Metal (misc.)

Elements

Stairs Roofs Drainage Connections / Plates

Connections

Bolted Connection

About this detail

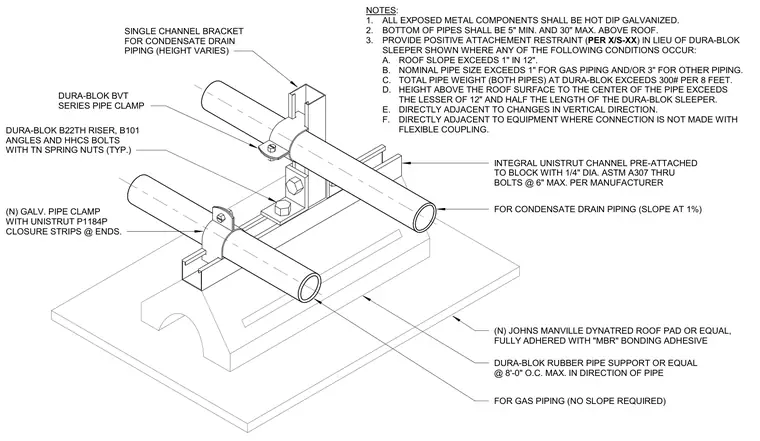

A Dura-Blok rubber pipe support or equal is installed over a Johns Manville Dynatred roof pad fully adhered with MBR bonding adhesive. The support features an integral unistrut channel pre-attached with quarter-inch diameter ASTM A307 through bolts spaced at six inches maximum per the manufacturer. Galvanized pipe clamps secure the gas piping directly to the channel, while a single channel bracket with B22TH riser, B101 angles, hex head cap screws with TN spring nuts, and a BVT series pipe clamp elevates the condensate drain piping. All exposed metal components are hot dip galvanized, and pipes are maintained between five and thirty inches above the roof surface.
