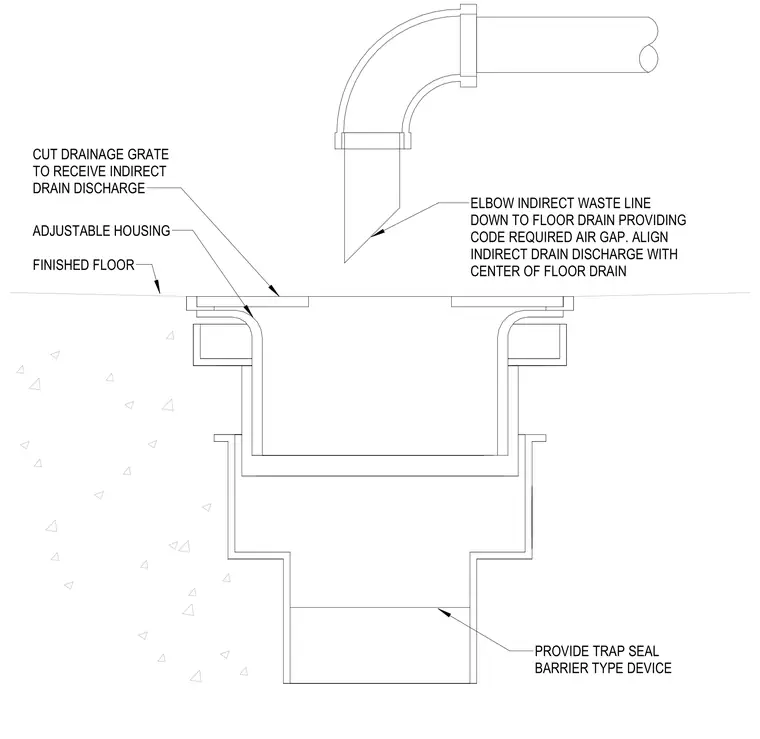

An indirect waste line terminates with an elbow discharging downward into the center of a floor drain to maintain a code-required air gap. The drainage grate is cut to accommodate the indirect waste discharge pipe. The drain assembly includes an adjustable housing set level with the finished floor surface. A trap seal barrier type device is installed within the lower drain body.
ADJUSTABLE HOUSING FINISHED FLOOR ELBOW INDIRECT WASTE LINE DOWN TO FLOOR DRAIN PROVIDING CODE REQUIRED AIR GAP. ALIGN INDIRECT DRAIN DISCHARGE WITH CENTER OF FLOOR DRAIN PROVIDE TRAP SEAL BARRIER TYPE DEVICE CUT DRAINAGE GRATE TO RECEIVE INDIRECT DRAIN DISCHARGE
