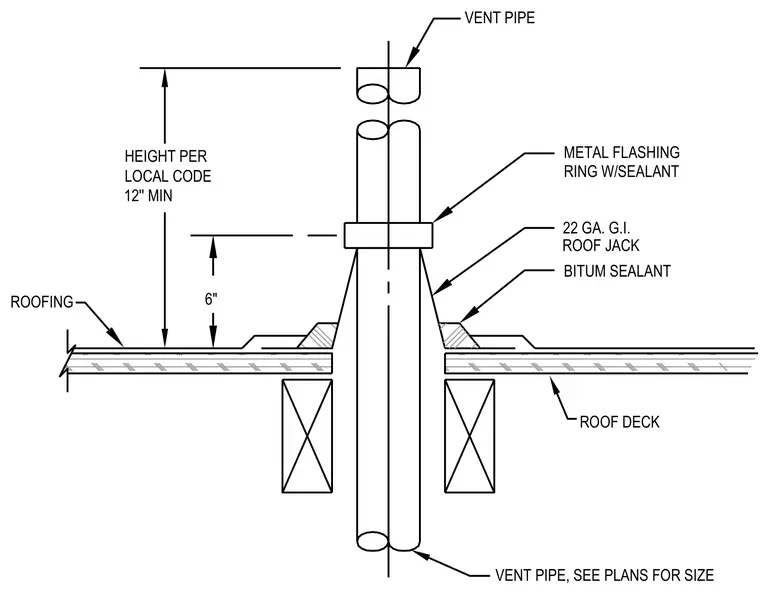

A vent pipe passes through the roof deck and roofing, sized per the architectural plans. A twenty-two gauge galvanized iron roof jack sits over the penetration, sealed at its base with a bitum sealant. A metal flashing ring with sealant wraps the vent pipe six inches above the roof surface. The vent pipe extends upward to a minimum height of twelve inches or per local code.
ROOFING 22 GA. G.I. ROOF JACK RING W/SEALANT BITUM SEALANT METAL FLASHING VENT PIPE 6" HEIGHT PER LOCAL CODE 12'' MIN VENT PIPE, SEE PLANS FOR SIZE ROOF DECK
