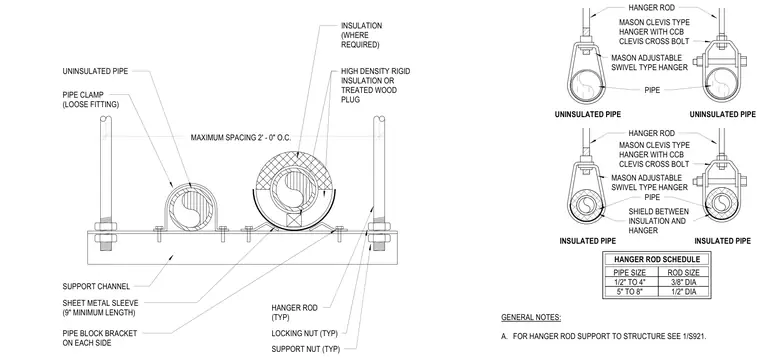

A trapeze pipe hanger assembly features a horizontal support channel suspended by vertical hanger rods. The rods are secured with support nuts and locking nuts. Uninsulated and insulated pipes rest upon the channel, held in place by loose-fitting pipe clamps and pipe block brackets on each side. Insulated pipes incorporate high-density rigid insulation or treated wood plugs with a sheet metal sleeve of nine inches minimum length and a protective shield between the insulation and the hanger. A hanger rod schedule specifies rod sizes for various pipe diameters, with three-eighths inch diameter rods for pipes one-half to four inches and one-half inch diameter rods for pipes five to eight inches.
GENERAL NOTES: A. FOR HANGER ROD SUPPORT TO STRUCTURE SEE 1/S921. UNINSULATED PIPE UNINSULATED PIPE INSULATED PIPE INSULATED PIPE HANGER ROD SCHEDULE HANGER ROD HANGER ROD MASON CLEVIS TYPE HANGER WITH CCB CLEVIS CROSS BOLT MASON ADJUSTABLE SWIVEL TYPE HANGER PIPE PIPE MASON CLEVIS TYPE HANGER WITH CCB CLEVIS CROSS BOLT MASON ADJUSTABLE SWIVEL TYPE HANGER SHIELD BETWEEN INSULATION AND HANGER PIPE SIZE 1/2" TO 4" 5" TO 8" ROD SIZE 3/8" DIA 1/2" DIA MAXIMUM SPACING 2' - 0" O.C. HANGER ROD (TYP) UNINSULATED PIPE PIPE CLAMP (LOOSE FITTING) SUPPORT CHANNEL SHEET METAL SLEEVE (9" MINIMUM LENGTH) LOCKING NUT (TYP) SUPPORT NUT (TYP) PIPE BLOCK BRACKET ON EACH SIDE HIGH DENSITY RIGID INSULATION OR TREATED WOOD PLUG INSULATION (WHERE REQUIRED)
