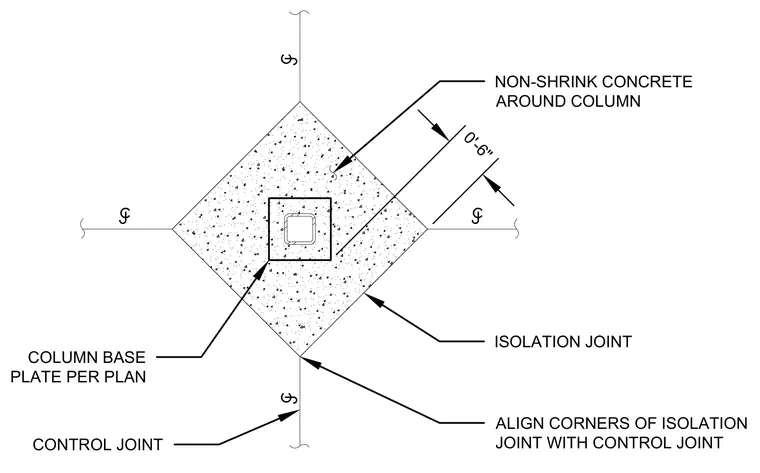

A structural column base plate is centered within a square pour of non-shrink concrete. An isolation joint surrounds the concrete pad, with its corners aligned directly with intersecting floor control joints. A clear dimension of zero feet six inches is maintained from the column base plate to the outer isolation boundary.
0'-6" COLUMN BASE PLATE PER PLAN CONTROL JOINT ALIGN CORNERS OF ISOLATION JOINT WITH CONTROL JOINT ISOLATION JOINT NON-SHRINK CONCRETE AROUND COLUMN
